BMS Comparison
Battery Components
ZettaJoule has been at the forefront of creating a supply chain for world-class components. Over the years, we’ve built batteries, supported, and sold these essential components, crafting a reliable kit that OEM battery pack builders can trust.
At the heart of each Battery is the Battery Management system. ZettaJoule has been a proud distributor of the LiTHIUM BALANCE brand since 2013
Selecting the BMS, is one of the most important steps in building a battery
Authorised Business Partner of Lithium Balance

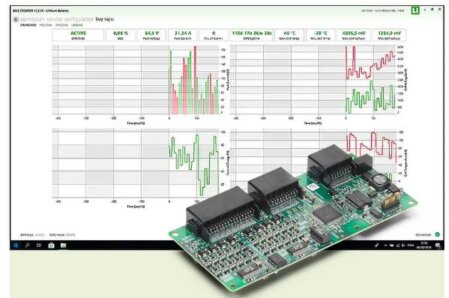

c-BMS-Entry-level BMS
n-BMS-High Voltage BMS

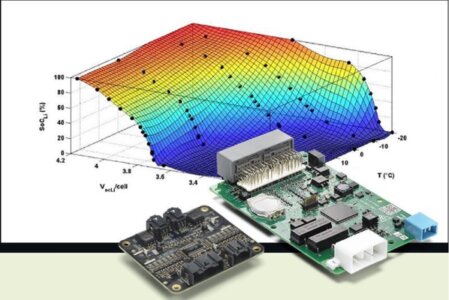

n3-BMS Next-GEN BMS
c-BMS24X-Parallel BMS
LiTHIUM BALANCE BMS Comparison Guide | ||||
Click here → | ||||
Architecture | Integrated | Integrated | Master-Slave | Master-Slave |
Max Slave | X | X | 32 | 30 |
Min Cells | 3 to 7 | 3 to 7 | 3-4 Cells 11V per CMU | 3-4 Cells 11V per CMU |
Max Cells/CMU | 12 | 12 | 12 | 12/(18) |
| Max Cells/Battery | 24 | 24 | 384 | 360 |
Max Voltage | 120V | 120V | 1000V | 1000/(1500)V |
Max Current | External Relay | External Relay | External Relay | External Relay |
Temp: Channels | 6 | 6 | 4 per CMU | 4/(6) per CMU |
Parallel packs | No | 10 | No | 10 |
Hot-Swapable | No | Yes | No | No |
Pre-Charge | External | External | External | External |
Isolated DC-DC | External | External | External | External |
Shunt | External | External | External | External |
Software | c-BMS Creator | c-BMS24X Creator | n-BMS Creator | n3-BMS Creator |
CAN-BUS | 1 | 1 | 2 | 3 |
Communication | CAN-BUS 2A & 2B | CAN-BUS 2A & 2B | CAN-BUS 2A & 2B | CAN-BUS 2A & 2B |
ISO26262 ASIL C | No | No | No | Yes |
Wide selection of quality components to build any Battery from 12V to 1000V
Gas Sensors
CO & CO2
Smoke & PM 2.5
Pressure
Electrolyte
Smoke & PM 2.5
Pressure
Electrolyte

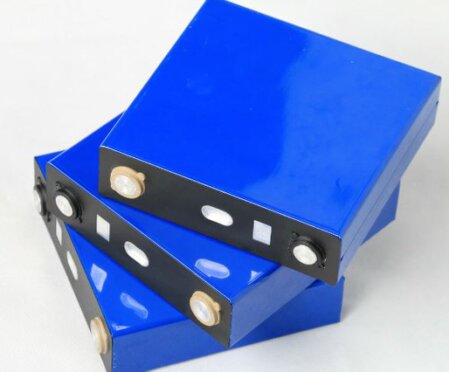

A GRADE CELLS
A-GRADE CELLS
LiFePO4
LTO
LiFePO4
LTO

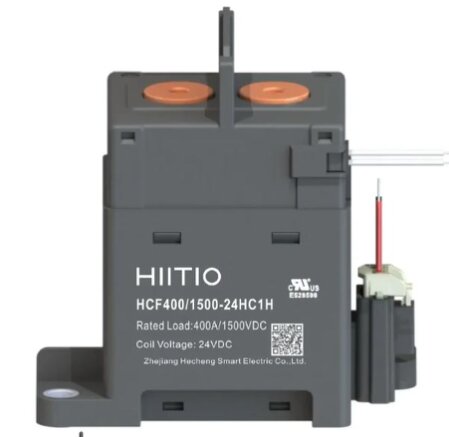

HV Relays
12-48 Coil
40A to 1000A
Aux relay
40A to 1000A
Aux relay

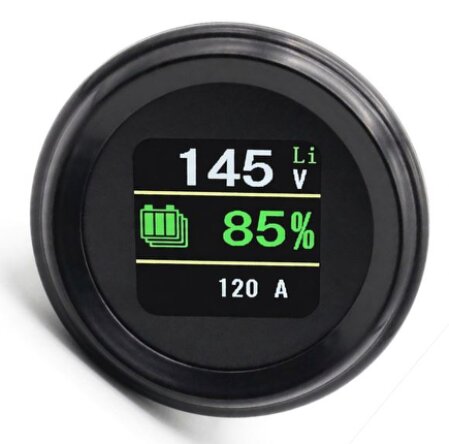

CAN-BUS Display
IP 65
CAN-BUS
Programable
CAN-BUS
Programable

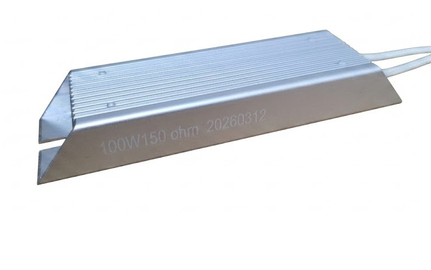

Pre Charge
Pre-Charge resistors
HV - 1000V
Power 0.1-30KW
HV - 1000V
Power 0.1-30KW

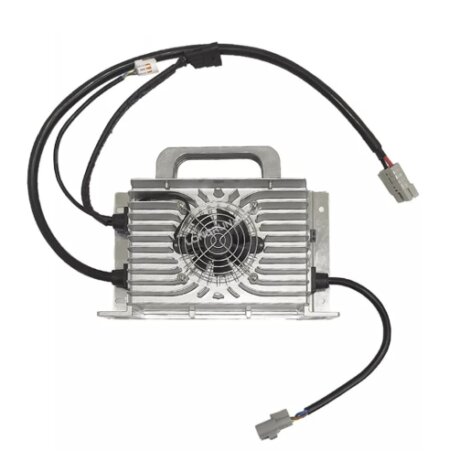

Chargers
12V to 850V
AC to DC
DC - DC
OBC
AC to DC
DC - DC
OBC

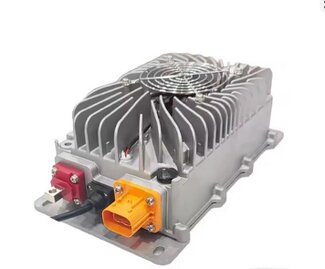

DC-DC
Longrun DC-DC
High Voltage
High Power
1KW-6KW
High Voltage
High Power
1KW-6KW

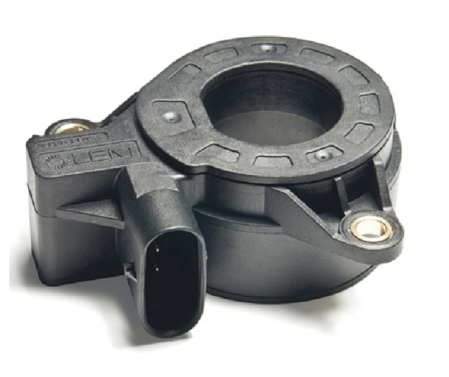

Shunts
Resistance
Dual Channel Hall
10A to 1000A
Dual Channel Hall
10A to 1000A

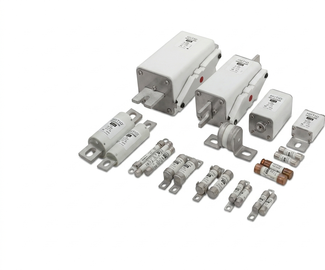

Fuses
1000V
10-800A
Fast Acting
Cylindrical
10-800A
Fast Acting
Cylindrical
