n3-BMS: Your go-to BMS for Ultra Safe, ISO26262 ASIL C certified BMS
View and Download
Support
"Local time-zone" support for South Africa and India
Key features
Hardware
- ISO 26262 certification provided by TÜV SÜD
- Adjustable Functional Safety-related parameters
- Master - Slave topology
- Master: Main Control Unit (MCU) and Slave: Cell Management Unit (CMU)
- CMU monitor 12 Cells, maximum 30 CMUs in one battery pack
- Max 360 Cells, build a battery up to 1000V-2000A
- Cell agnostic, Any Chemistry, Cell voltages are fully configurable, Software
- 10 Batteries in parallel capability.

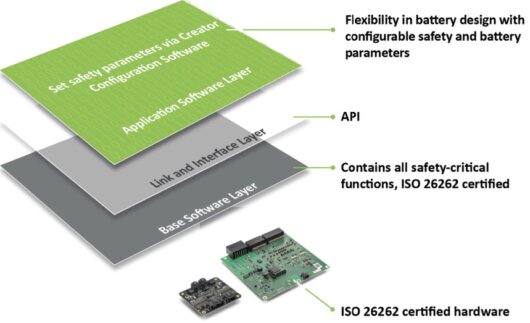

The n3-BMS features a unique software structure that separates the BMS's functional safety-related features into a Base Software Layer (BSW), while the rest of the functionality is handled by an Application Software Layer (ASW). This allows users to adjust key BMS parameters without compromising ISO 26262 certification. In addition, customers can use any number of CMU channels, ranging from 6 to 12.
Furthermore, with its dual-core lockstep CPU, ASIL C-compliant ASIC, and advanced algorithms, the n3-BMS delivers high measurement accuracy.
